LSZH Micro Duct and Tube Bundle - 5/3.5mm Series

LSZH Micro duct & Tube Bundle - 5/3.5mm Series Fiber Optic System Micro Duct Solution
LSZH Micro Duct & Tube Bundle -  5/3.5mm Series

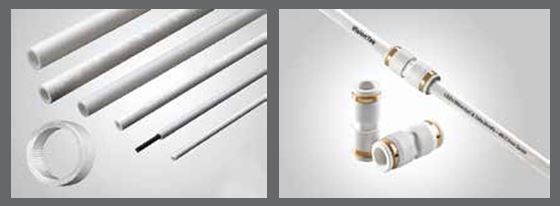

VISIONTEK HDPE LSZH Micro duct and Tube Bundle of 5mm series, the metal-free halogen-free Low Fire Hazard duct. The duct assemblies are available in four versions  with 1 to 24 sub-ducts (micro duct). Each micro duct has an outer/inner diameter of 5/3.5 mm.



Raw Materials and Manufacture

All duct shall be made from non-conducting LFH
compound with following characteristics:
  • Ignition Resistance - Oxygen index 37%
  • Flame resistance - IEC 60332-1 vertical test
  • Low Smoke emission during fire
  • Halogen free - contains no fluorine ,chlorine or bromine
  • Low Acid Gas emission

SPECIFICATION

Tube Bundle

Counts of micro duct

Micro duct LSZH

Thickness of Sheath

Outer Diameter (Nom)

Max Tensile (N)

Bend Radius (mm)

LSZH0501

1

5/3.5mm

-

5mm

60

50

LSZH0504

4

5/3.5mm

1.2mm

13.5mm

400

150

LSZH0507

7

5/3.5mm

1.2mm

17.5mm

600

210

LSZH0512

12

5/3.5mm

1.2mm

21.5mm

950

350

LSZH0519

19

5/3.5mm

1.2mm

27.4mm

1300

400

LSZH0524

24

5/3.5mm

1.2mm

29.8mm

380

1400
